SKU No : EB12LA13-13

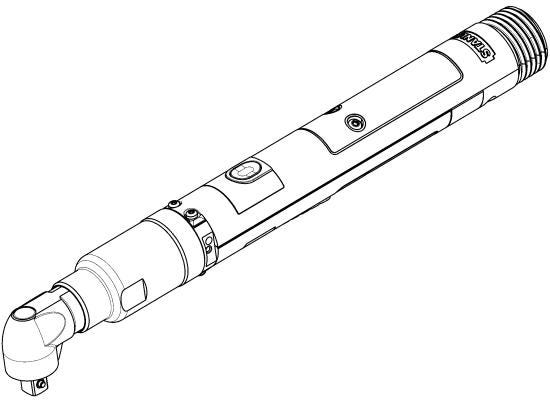

EB12LA13-13 EB Series Transducerized Nutrunner

Product description :

EB12LA13-13 Lever Start Corded Nutrunner With The Following Features: - Rated For 1.3 - 13 NM With A Recomended Working Range Of 2.6 - 10.4 NM - 97-970 RPM - Right Angle Output with 26mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeRight Angle
Recommended Working Range2.6 - 10.4 NM
Useful Tool Range1.3 - 13 NM
Max Torque13.0
Min Speed (RPM)97.0
Max Speed (RPM)970.0
