SKU No : CD42BS

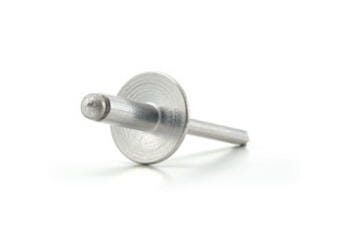

POP 3.2mm [1/8] Copper / Steel Open End Rivets
Product description :
1.6002-3.175 mm Grip with 3.2 mm Nominal Diameter in Dome Head Style with Copper Body Material and Steel Mandrel Material
Technical Specifications
| Property | Specification |
|---|---|
Product name | 1.6002 - 3.175 Grip in Copper/Steel, Open End Non-Structural Blind Rivets |
Nominal Diameter mm | 3.2 |
Nominal Diameter Inches | 3.2mm [1/8] |
Body Material | Copper |
Mandrel Material | Steel |
Finish-Body | Plain |
Finish- Mandrel | Plain or Protective Coat |
Head Style | Dome |
Min grip mm | 1.6002 |
Max grip mm | 3.175 |
Min Grip Inches | 0.063 |
Max Grip Inches | 0.125 |
Min Hole Size mm | 3.2766 |
Max Hole Size mm | 3.37 |
Min Holes Size Inches | 0.129 |
Max Hole Size Inches | 0.133 |
Max Body Length mm | 6.731 |
Max Body Length Inches | 0.265 |
Max Secondary Protrusion mm | 9.779 |
Max Secondary Protrusion Inches | 0.385 |
Flange Diameter mm Max | 6.6548 |
Flange Diameter inches Max | 0.262 |
Flange Thickness mm Max | 1.016 |
Flange Thickness Inches Max | 0.04 |
Shear kN | 0.9563676472810075 |
Tensile kN | 1.334 |
Shear lbf | 215 |
Tensile lbf | 300 |
