SKU No : CCPQ-08-04

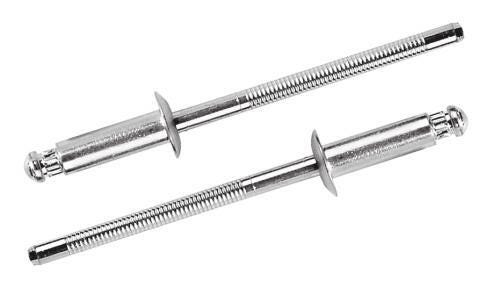

Q Rivet 6.4mm [1/4] (8) Stainless Steel / Stainless Steel Structural Rivet Nuts
Product description :
3.2-6.35 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Dome Head Style with Stainless Steel Body material and Stainless Steel Mandrel material
Technical Specifications
| Property | Specification |
|---|---|
product name | 3.2004-6.35 mm Stainless Steel/Stainless Steel Q Rivet Structural Blind Rivets |
nominal Diameter | 6.4mm [1/4] (8) |
Body Material | Stainless Steel |
Mandrel Material | Stainless Steel |
Finish-Body | None |
Finish- Mandrel | None |
Head Style | Dome |
Min grip mm | 3.2 |
Max grip mm | 6.35 |
Min Grip Inches | 0.126 |
Max Grip Inches | 0.25 |
Min Hole Size mm | 6.35 |
Max Hole Size mm | 6.63 |
Min Holes Size Inches | 0.25 |
Max Hole Size Inches | 0.261 |
Max Body Length mm | 12.7 |
Max Body Length Inches | 0.5 |
Max Secondary Protrusion mm | 20.7 |
Max Secondary Protrusion inches | 0.815 |
Flange Diameter mm | 13.34 |
Flange Diameter inches | 0.525 |
Flange Thickness mm | 1.96 |
Flange Thickness Inches | 0.077 |
Shear lbf | 2450 |
Tensile lbf | 2250 |
Brand | Avdel |
