Blind FasteningStructuralQ RivetQ Rivet 3.2mm [1/8] (4) Aluminum / Steel Structural Rivet Nuts
SKU No : BSPQ-04-05

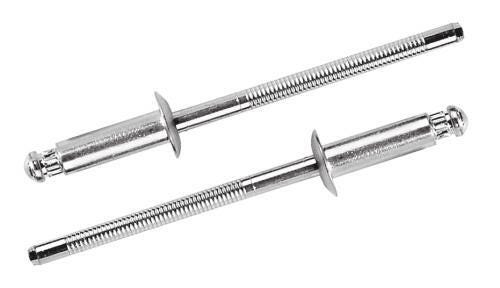

Q Rivet 3.2mm [1/8] (4) Aluminum / Steel Structural Rivet Nuts

Product description :

4.78-7.92 mm grip with 3.2mm [1/8] (4) Nominal Diameter based on Dome Head Style with Aluminum Body material and Steel Mandrel material

Technical Specifications

PropertySpecification
product name
4.7752-7.9248 mm Aluminum/Steel Q Rivet Structural Blind Rivets
nominal Diameter
3.2mm [1/8] (4)
Body Material
Aluminum
Mandrel Material
Steel
Finish-Body
None
Finish- Mandrel
Zinc Plate
Head Style
Dome
Min grip mm
4.78
Max grip mm
7.92
Min Grip Inches
0.188
Max Grip Inches
0.312
Min Hole Size mm
3.28
Max Hole Size mm
3.38
Min Holes Size Inches
0.129
Max Hole Size Inches
0.133
Max Body Length mm
11.73
Max Body Length Inches
0.462
Max Secondary Protrusion mm
16.48
Max Secondary Protrusion inches
0.649
Flange Diameter mm
6.65
Flange Diameter inches
0.262
Flange Thickness mm
1.07
Flange Thickness Inches
0.042
Shear lbf
350
Tensile lbf
325
Brand
Avdel
