SKU No : BSCQ-04-03

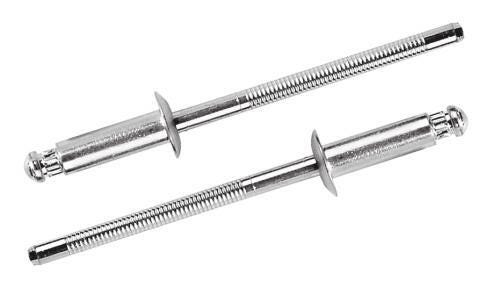

Q Rivet 3.2mm [1/8] (4) Aluminum / Steel Structural Rivet Nuts
Product description :
2.39-4.75 mm grip with 3.2mm [1/8] (4) Nominal Diameter based on Countersunk Head Style with Aluminum Body material and Steel Mandrel material
Technical Specifications
| Property | Specification |
|---|---|
product name | 2.3876-4.75 mm Aluminum/Steel Q Rivet Structural Blind Rivets |
nominal Diameter | 3.2mm [1/8] (4) |
Body Material | Aluminum |
Mandrel Material | Steel |
Finish-Body | None |
Finish- Mandrel | Zinc Plate |
Head Style | Countersunk |
Min grip mm | 2.39 |
Max grip mm | 4.75 |
Min Grip Inches | 0.094 |
Max Grip Inches | 0.187 |
Min Hole Size mm | 3.28 |
Max Hole Size mm | 3.38 |
Min Holes Size Inches | 0.129 |
Max Hole Size Inches | 0.133 |
Max Body Length mm | 8.56 |
Max Body Length Inches | 0.337 |
Max Secondary Protrusion mm | 13.31 |
Max Secondary Protrusion inches | 0.524 |
Flange Diameter mm | 5.92 |
Flange Diameter inches | 0.233 |
Flange Thickness mm | 0.81 |
Flange Thickness Inches | 0.032 |
Shear lbf | 350 |
Tensile lbf | 325 |
Brand | Avdel |
