SKU No : B44LA19-70

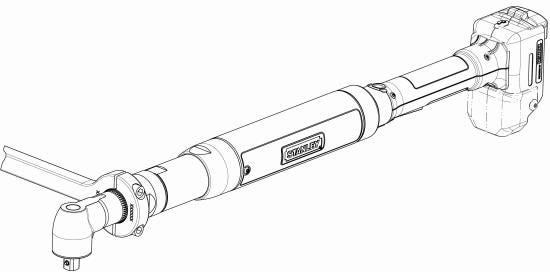

B44LA19-70 B Series Wireless Transducerized Nutrunner

Product description :

B44LA19-70 Lever Start DeWalt 54V / 60V FlexVolt Platform Nutrunner With The Following Features: - Rated For 7 - 70 NM With A Recomended Working Range Of 14 - 56 NM - 43-425 RPM - 9 lb Tool Weight - Right Angle Output with 38mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 54V / 60V FlexVolt Platform
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeRight Angle
Recommended Working Range14 - 56 NM
Useful Tool Range7 - 70 NM
Max Torque70.0
Min Speed (RPM)43.0
Max Speed (RPM)425.0
