SKU No : B33LA19-55

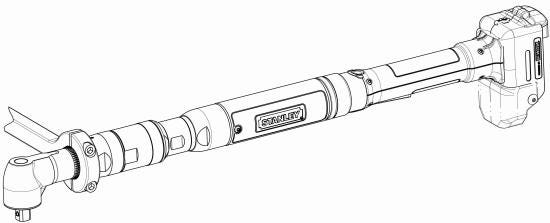

B33LA19-55 B Series Wireless Transducerized Nutrunner

Product description :

B33LA19-55 Lever Start DeWalt 54V / 60V FlexVolt Platform Nutrunner With The Following Features: - Rated For 5.5 - 55 NM With A Recomended Working Range Of 11 - 44 NM - 44-439 RPM - 5 lb Tool Weight - Right Angle Output with 38mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 54V / 60V FlexVolt Platform
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeRight Angle
Recommended Working Range11 - 44 NM
Useful Tool Range5.5 - 55 NM
Max Torque55.0
Min Speed (RPM)44.0
Max Speed (RPM)439.0
