SKU No : B33LA15-25

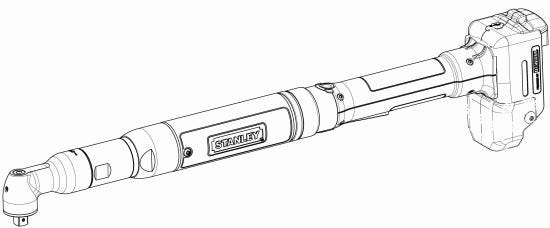

B33LA15-25 B Series Wireless Transducerized Nutrunner

Product description :

B33LA15-25 Lever Start DeWalt 54V / 60V FlexVolt Platform Nutrunner With The Following Features: - Rated For 2.5 - 25 NM With A Recomended Working Range Of 5 - 20 NM - 96-959 RPM - 4 lb Tool Weight - Right Angle Output with 30mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 54V / 60V FlexVolt Platform
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeRight Angle
Recommended Working Range5 - 20 NM
Useful Tool Range2.5 - 25 NM
Max Torque25.0
Min Speed (RPM)96.0
Max Speed (RPM)959.0
