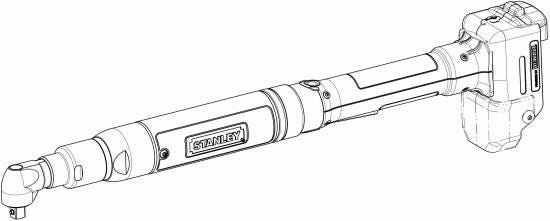

B33LA13-14 B Series Wireless Transducerized Nutrunner

Product description :

B33LA13-14 Lever Start DeWalt 54V / 60V FlexVolt Platform Nutrunner With The Following Features: - Rated For 1.4 - 14 NM With A Recomended Working Range Of 2.8 - 11.2 NM - 170-1698 RPM - 4 lb Tool Weight - Right Angle Output with 26mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 54V / 60V FlexVolt Platform

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range2.8 - 11.2 NM

Useful Tool Range1.4 - 14 NM

Max Torque14.0

Min Speed (RPM)170.0

Max Speed (RPM)1698.0
