B23LA22A-95 B Series Wireless Transducerized Nutrunner

Product description :

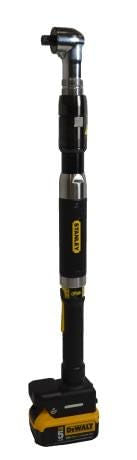

B23LA22A-95 Lever Start DeWalt 18V / 20V Max Platform Nutrunner With The Following Features: - Rated For 9.5 - 95 NM With A Recomended Working Range Of 19 - 76 NM - 11-103 RPM - Right Angle Output with 44mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 18V / 20V Max Platform

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range19 - 76 NM

Useful Tool Range9.5 - 95 NM

Max Torque95.0

Min Speed (RPM)11.0

Max Speed (RPM)103.0
