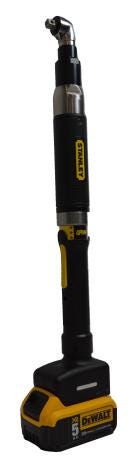

B23LA13-12 B Series Wireless Transducerized Nutrunner

Product description :

B23LA13-12 Lever Start DeWalt 18V / 20V Max Platform Nutrunner With The Following Features: - Rated For 1.2 - 12 NM With A Recomended Working Range Of 2.4 - 9.6 NM - 67-665 RPM - 4 lb Tool Weight - Right Angle Output with 26mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 18V / 20V Max Platform

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range2.4 - 9.6 NM

Useful Tool Range1.2 - 12 NM

Max Torque12.0

Min Speed (RPM)67.0

Max Speed (RPM)665.0
