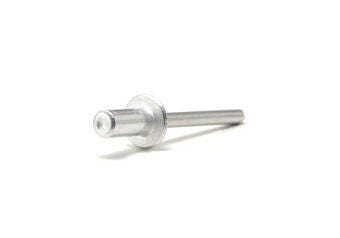

POP 3.2mm [1/8] Aluminum / Steel Closed End Rivets
SKU No
:
AD46H
POP 3.2mm [1/8] Aluminum / Steel Closed End Rivets
Product description :
7.9502-9.525 mm Grip with 3.2mm [1/8] mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
7.9502 - 9.525 Grip in Aluminum/Steel, Closed End Non-Structural Blind Rivets
Product name
3.2mm [1/8]
Nominal Diameter mm
Brand
3.2mm [1/8]
Nominal Diameter Inches
Aluminum
Body Material
Steel
Mandrel Material
Finish-Body
Plain
Finish- Mandrel
Plain
Head Style
Dome
Min grip mm
7.9502
Max grip mm
9.524999999999999
Min Grip Inches
0.313
Max Grip Inches
0.375
Min Holes Size Inches
0.129
Max Hole Size Inches
0.133
Max Body Length Inches
0.5650000000000001
Max Secondary Protrusion Inches
0.5650000000000001
Flange Diameter mm Max
6.908799999999999
Flange Diameter inches Max
0.272
Flange Thickness Inches Max
0.051
Shear lbf
not specified
Tensile lbf
385
