SKU No : AD46BSLF

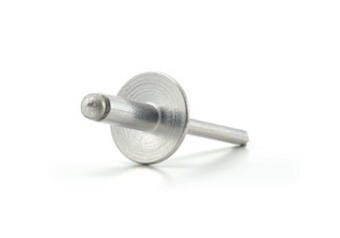

POP 3.2mm [1/8] Aluminum / Steel Open End Rivets
Product description :
6.3754-9.525 mm Grip with 3.2 mm Nominal Diameter in Dome, Large Flange Head Style with Aluminum Body Material and Steel Mandrel Material
Technical Specifications
| Property | Specification |
|---|---|
Product name | 6.3754 - 9.525 Grip in Aluminum/Steel, Open End Non-Structural Blind Rivets |
Nominal Diameter mm | 3.2 |
Nominal Diameter Inches | 3.2mm [1/8] |
Body Material | Aluminum |
Mandrel Material | Steel |
Finish-Body | Plain |
Finish- Mandrel | Plain or Protective Coat |
Head Style | Dome, Large Flange |
Min grip mm | 6.3754 |
Max grip mm | 9.525 |
Min Grip Inches | 0.251 |
Max Grip Inches | 0.375 |
Min Hole Size mm | 3.2766 |
Max Hole Size mm | 3.3782 |
Min Holes Size Inches | 0.129 |
Max Hole Size Inches | 0.133 |
Max Body Length mm | 13.081000000000001 |
Max Body Length Inches | 0.515 |
Max Secondary Protrusion mm | 16.129 |
Max Secondary Protrusion Inches | 0.635 |
Flange Diameter mm Max | 9.906 |
Flange Diameter inches Max | 0.39 |
Flange Thickness mm Max | 1.6509999999999998 |
Flange Thickness Inches Max | 0.065 |
Shear kN | 0.9341265392047051 |
Tensile kN | 1.445 |
Shear lbf | 210 |
Tensile lbf | 325 |
