SKU No : AA33LH22AV1-99

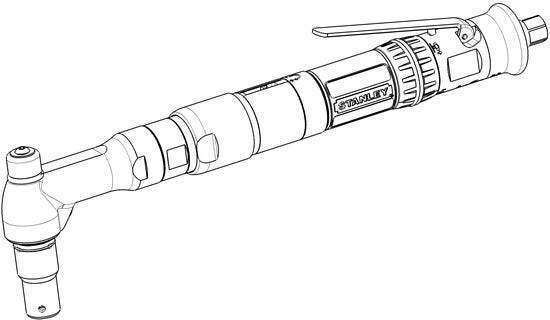

AA33LH22AV1-99 AA Pneumatic Clutch Nutrunner

Product description :

AA33LH22AV1-99 Lever Start Pneumatic Nutrunner With The Following Features: - Rated For 9.9 - 99 NM With A Recomended Working Range Of 19.8 - 79.2 NM - 158-175 RPM - Hold-n-Drive Output - Adjustable Clutch Shutoff - Direct Drive - Lever Start handle- 1 Inch Retraction

Download 3D Drawings

Download 2D Drawings

Pneumatic
Power Source
Adjustable Clutch Shutoff
Torque Measurement
Brand
Direct Drive
Drive Type
Lever Start
Handle Type
Hold-n-Drive
Output Type
Recommended Working Range19.8 - 79.2 NM
Useful Tool Range9.9 - 99 NM
Max Torque99.0
Min Speed (RPM)158.0
Max Speed (RPM)175.0
Configurable Options20K100400 Swivel Bail
