SKU No : AA23LC521-30

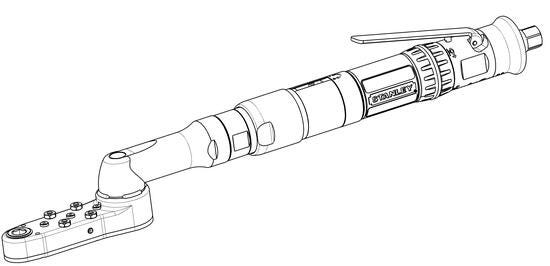

AA23LC521-30 AA Pneumatic Clutch Nutrunner

Product description :

AA23LC521-30 Lever Start Pneumatic Nutrunner With The Following Features: - Rated For 3 - 30 NM With A Recomended Working Range Of 6 - 24 NM - 251-291 RPM - Crowfoot Output - Adjustable Clutch Shutoff - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Pneumatic
Power Source
Adjustable Clutch Shutoff
Torque Measurement
Brand
Direct Drive
Drive Type
Lever Start
Handle Type
Crowfoot
Output Type
Recommended Working Range6 - 24 NM
Useful Tool Range3 - 30 NM
Max Torque30.0
Min Speed (RPM)251.0
Max Speed (RPM)291.0
Configurable Options20K100400 Swivel Bail
