SKU No : 89768

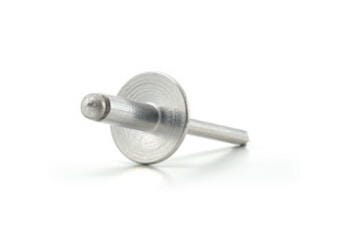

TSPD610BS 375 S5C

Product description :

TSPD610BS 375 S5C

Technical Specifications

PropertySpecification
Nominal Diameter mm
4.8
Nominal Diameter Inches
4.8mm [3/16]
Body Material
Steel
Mandrel Material
Steel
Finish-Body
Zinc Plate
Finish- Mandrel
Zinc Plate
Head Style
Dome
Min grip mm
6.4
Max grip mm
7.9
Min Grip Inches
0.252
Max Grip Inches
0.311
Min Hole Size mm
4.9
Max Hole Size mm
5.0
Min Holes Size Inches
0.1929
Max Hole Size Inches
0.1969
Max Body Length mm
13.35
Max Body Length Inches
0.5256
Flange Diameter mm Max
9.82
Flange Diameter inches Max
0.3866
Flange Thickness mm Max
1.6
Shear kN
2.62
Tensile kN
3.5
Bulk Pack
100263
SmallPack
True
