SKU No : 89632

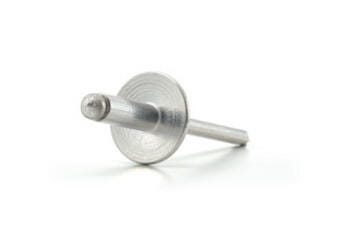

TSPD48BS 375 S1K

Product description :

TSPD48BS 375 S1K

Technical Specifications

PropertySpecification
Nominal Diameter mm
3.2
Nominal Diameter Inches
3.2mm [1/8]
Body Material
Steel
Mandrel Material
Steel
Finish-Body
Zinc Plate
Finish- Mandrel
Zinc Plate
Head Style
Dome
Min grip mm
4.8
Max grip mm
6.4
Min Grip Inches
0.189
Max Grip Inches
0.252
Min Hole Size mm
3.3
Max Hole Size mm
3.4
Min Holes Size Inches
0.1299
Max Hole Size Inches
0.1339
Max Body Length mm
10.0
Max Body Length Inches
0.3937
Flange Diameter mm Max
6.7
Flange Diameter inches Max
0.2638
Flange Thickness mm Max
1.1
Shear kN
1.15
Tensile kN
1.55
Bulk Pack
100446
SmallPack
True
