SKU No : 89000

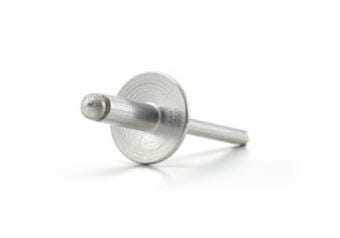

AD48ABS S5C
Product description :
AD48ABS S5C
Technical Specifications
| Property | Specification |
|---|---|
Nominal Diameter mm | 3.2 |
Nominal Diameter Inches | 3.2mm [1/8] |
Body Material | Aluminum |
Mandrel Material | Aluminum |
Finish-Body | Plain |
Finish- Mandrel | Plain |
Head Style | Dome |
Min grip mm | 9.55 |
Max grip mm | 12.7 |
Min Grip Inches | 0.376 |
Max Grip Inches | 0.5 |
Min Hole Size mm | 3.2766 |
Max Hole Size mm | 3.38 |
Min Holes Size Inches | 0.129 |
Max Hole Size Inches | 0.133 |
Max Body Length mm | 16.26 |
Max Body Length Inches | 0.64 |
Max Secondary Protrusion mm | 19.3 |
Max Secondary Protrusion Inches | 0.76 |
Flange Diameter mm Max | 6.65 |
Flange Diameter inches Max | 0.262 |
Flange Thickness mm Max | 1.02 |
Flange Thickness Inches Max | 0.04 |
Shear kN | 0.689 |
Tensile kN | 1.045 |
Shear lbf | 155 |
Tensile lbf | 235 |
Bulk Pack | AD48ABS |
SmallPack | True |
