SKU No : 88442

ACD508ASM 460 S5C

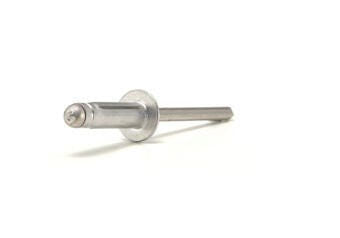

Product description :

ACD508ASM 460 S5C

Technical Specifications

PropertySpecification
Nominal Diameter mm
4.0
Nominal Diameter Inches
4.0mm [5/32]
Body Material
Aluminium
Mandrel Material
Aluminium
Finish-Body
Natural
Finish- Mandrel
Natural
Head Style
Dome
Max grip mm
6.35
Max Grip Inches
0.25
Min Hole Size mm
4.2
Max Hole Size mm
4.3
Min Holes Size Inches
0.1654
Max Hole Size Inches
0.1693
Max Body Length mm
18.0
Max Body Length Inches
0.7087
Max Secondary Protrusion mm
20.3
Max Secondary Protrusion Inches
0.7992
Flange Diameter mm Max
8.2
Flange Diameter inches Max
0.3228
Flange Thickness mm Max
1.34
Shear kN
0.7
Tensile kN
0.9
Bulk Pack
100794
SmallPack
True
