SKU No : 88345
TAPK31BS 001 S5C
Product description :

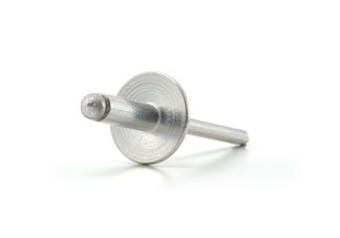

TAPK31BS 001 S5C
Technical Specifications
| Property | Specification |
|---|---|
Nominal Diameter mm | 2.4 |
Nominal Diameter Inches | 2.4mm [3/32] |
Body Material | Aluminium (3.5% Magnesium Alloy) |
Mandrel Material | Steel |
Finish-Body | Plain |
Finish- Mandrel | Zinc Plate |
Head Style | Countersunk |
Max grip mm | 1.6 |
Max Grip Inches | 0.063 |
Min Hole Size mm | 2.5 |
Max Hole Size mm | 2.6 |
Min Holes Size Inches | 0.0984 |
Max Hole Size Inches | 0.1024 |
Max Body Length mm | 5.0 |
Max Body Length Inches | 0.1969 |
Flange Diameter mm Max | 5.0 |
Flange Diameter inches Max | 0.1969 |
Shear kN | 0.4 |
Tensile kN | 0.5 |
Bulk Pack | 100707 |
SmallPack | True |
