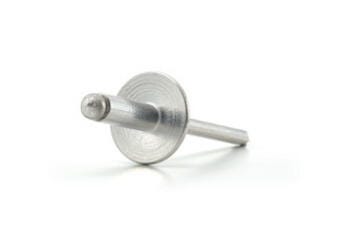

SKU No : 88050
AD64ABS S5C
Product description :
AD64ABS S5C
Technical Specifications
| Property | Specification |
|---|---|
Nominal Diameter mm | 4.8 |
Nominal Diameter Inches | 4.8mm [3/16] |
Body Material | Aluminum |
Mandrel Material | Aluminum |
Finish-Body | Plain |
Finish- Mandrel | Plain |
Head Style | Dome |
Min grip mm | 3.2 |
Max grip mm | 6.35 |
Min Grip Inches | 0.126 |
Max Grip Inches | 0.25 |
Min Hole Size mm | 4.876799999999999 |
Max Hole Size mm | 4.98 |
Min Holes Size Inches | 0.192 |
Max Hole Size Inches | 0.196 |
Max Body Length mm | 11.18 |
Max Body Length Inches | 0.44 |
Max Secondary Protrusion mm | 15.24 |
Max Secondary Protrusion Inches | 0.6 |
Flange Diameter mm Max | 9.98 |
Flange Diameter inches Max | 0.393 |
Flange Thickness mm Max | 1.45 |
Flange Thickness Inches Max | 0.057 |
Shear kN | 1.401 |
Tensile kN | 2.224 |
Shear lbf | 315 |
Tensile lbf | 500 |
Bulk Pack | AD64ABS |
SmallPack | True |
