SKU No : 76003-00003

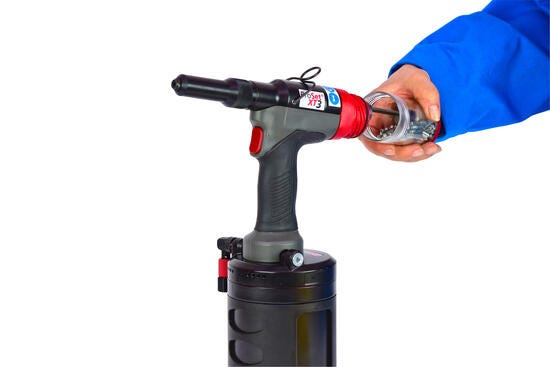

ProSet XT3 - NA version

Product description :

The ProSet® XT3 can be used in a variety of applications, setting a large range of breakstem rivets, lockbolts, and sealing plug sizes. The extremely large stroke of 26 mm allows the placement of longer rivets like Monobolt® and Interlock® in one set. The innovative, ergonomic design ensures maximum user comfort and efficiency. The ProSet® XT3 will set 4.0mm (5/32") to 6.4mm (1/4”) diameter rivets in all materials. It will also set 4.8 (3/16") diameter lockbolts and up to 9.0mm diameter sealing plugs with additional nose assembly.
334 mm
Height
330 mm
Length
Brand
2.14 kG
Weight
0.9 Seconds
Cycle time
75 dB(A)
Noise level
Vibration< 2,5 m/s2
Pull force17 kN
Stroke28 mm
Minimum aluminium fastener size6 mm
Minimum steel fastener size6 mm
Minimum stainless steel fastener size6 mm
