SKU No : 76002-00003

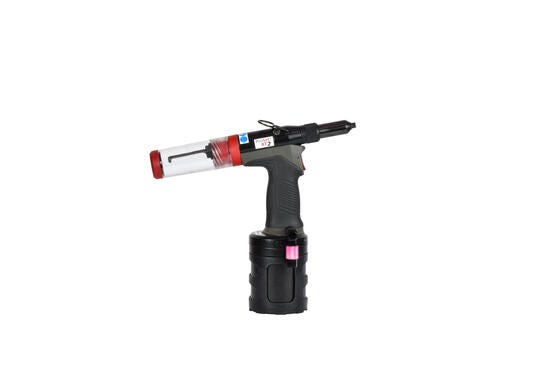

ProSet XT2 - NA version

Product description :

The ProSet® XT2 sets a new standard for pneumatic rivet tools. Designed specifically to set a wide range of breakstem rivets, this tool delivers 8.9 kN of pull force with an outstanding force-to weight ratio of 7.18kN/kg. The innovative, ergonomic design ensures maximum user comfort and efficiency. The ProSet® XT2 will set 3.0 & 3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), and 5.0mm diameter rivets in all materials including high-strength structural stainless steel rivets. The ProSet® XT2 will also place up to 7.0mm sealing plugs with an additional nose assembly.

Technical Specifications

PropertySpecification
Height
274 mm
Length
298 mm
Weight
1.24 kG
Brand
SAT
Cycle time
0.6 Seconds
Noise level
75 dB(A)
Vibration
Pull force
8.9 kN
Stroke
20 mm
Minimum aluminium fastener size
3 mm
Minimum steel fastener size
3 mm
Minimum stainless steel fastener size
3 mm
Maximum aluminium fastener size
5 mm
Maximum steel fastener size
5 mm
Maximum stainless steel fastener size
5 mm
