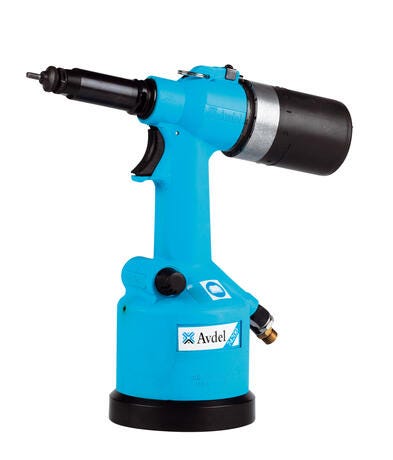

742 Tool - Global version

Product description :

Ideal for demanding production environments, the 74200 high speed tool is recommended for the installation of larger Avdel® threaded inserts, M10 and M12. The Avdel® 74200 model features a one-step trigger for simplicity and ease of use while the tough plastic body makes this tool capable of withstanding the toughest production lines. The 74200 can be suspended or used as a hand tool, allowing maximum installation uses to minimize installation costs.

280 mm

Height

>250 mm

Length

Brand

2.2 kG

Weight

2.5 Seconds

Cycle time

75 dB(A)

Noise level

Vibration< 2.5 m/s2

Pull force19.1 kN

Stroke7 mm

Minimum aluminium fastener sizeM3 mm

Minimum steel fastener sizeM3 mm

Minimum stainless steel fastener sizeM3 mm
