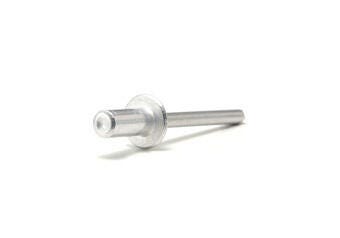

SKU No : 69952
AD42SB 001 S5C
Product description :
AD42SB 001 S5C
Technical Specifications
| Property | Specification |
|---|---|
Nominal Diameter mm | 3.2 |
Nominal Diameter Inches | 3.2mm [1/8] |
Body Material | Aluminum |
Mandrel Material | Steel |
Finish-Body | Plain |
Finish- Mandrel | Plain |
Head Style | Dome |
Min grip mm | 0.81 |
Max grip mm | 1.57 |
Min Grip Inches | 0.032 |
Max Grip Inches | 0.062 |
Min Hole Size mm | 3.2766 |
Max Hole Size mm | 3.38 |
Min Holes Size Inches | 0.129 |
Max Hole Size Inches | 0.133 |
Max Body Length mm | 6.4 |
Max Body Length Inches | 0.252 |
Max Secondary Protrusion mm | 6.4 |
Max Secondary Protrusion Inches | 0.252 |
Flange Diameter mm Max | 6.3 |
Flange Diameter inches Max | 0.248 |
Flange Thickness mm Max | 1.3 |
Flange Thickness Inches Max | 0.051 |
Tensile kN | 1.694 |
Shear lbf | not specified |
Tensile lbf | 385 |
Bulk Pack | AD41H |
SmallPack | True |
