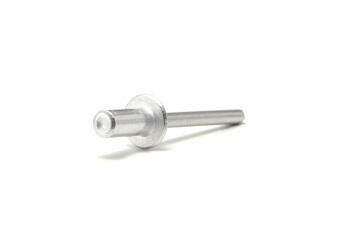

SKU No : 69903
AD620SB 001 S5C
Product description :
AD620SB 001 S5C
Technical Specifications
| Property | Specification |
|---|---|
Nominal Diameter mm | 4.8 |
Nominal Diameter Inches | 4.8mm [3/16] |
Body Material | Aluminum |
Mandrel Material | Steel |
Finish-Body | Plain |
Finish- Mandrel | Plain |
Head Style | Dome |
Min grip mm | 12.73 |
Max grip mm | 15.88 |
Min Grip Inches | 0.501 |
Max Grip Inches | 0.625 |
Min Hole Size mm | 4.876799999999999 |
Max Hole Size mm | 4.98 |
Min Holes Size Inches | 0.192 |
Max Hole Size Inches | 0.196 |
Max Body Length mm | 22.35 |
Max Body Length Inches | 0.88 |
Max Secondary Protrusion mm | 22.35 |
Max Secondary Protrusion Inches | 0.88 |
Flange Diameter mm Max | 9.98 |
Flange Diameter inches Max | 0.393 |
Flange Thickness mm Max | 2.06 |
Flange Thickness Inches Max | 0.081 |
Shear kN | 2.53 |
Tensile kN | 3.696 |
Shear lbf | 575 |
Tensile lbf | 840 |
Bulk Pack | AD610H |
SmallPack | True |
