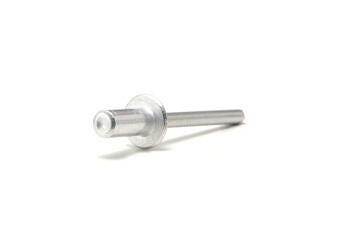

SKU No : 69901
AD68SS 001 S5C
Product description :
AD68SS 001 S5C
Technical Specifications
| Property | Specification |
|---|---|
Nominal Diameter mm | 4.8 |
Nominal Diameter Inches | 4.8mm [3/16] |
Body Material | Aluminum |
Mandrel Material | Stainless Steel |
Finish-Body | Plain |
Finish- Mandrel | Plain |
Head Style | Dome |
Min grip mm | 3.2 |
Max grip mm | 4.75 |
Min Grip Inches | 0.126 |
Max Grip Inches | 0.187 |
Min Hole Size mm | 4.876799999999999 |
Max Hole Size mm | 4.98 |
Min Holes Size Inches | 0.192 |
Max Hole Size Inches | 0.196 |
Max Body Length mm | 10.34 |
Max Body Length Inches | 0.407 |
Max Secondary Protrusion mm | 10.34 |
Max Secondary Protrusion Inches | 0.407 |
Flange Diameter mm Max | 9.98 |
Flange Diameter inches Max | 0.393 |
Flange Thickness mm Max | 2.06 |
Flange Thickness Inches Max | 0.081 |
Shear kN | 2.2 |
Tensile kN | 3.036 |
Shear lbf | 500 |
Tensile lbf | 690 |
Bulk Pack | AD63SSH |
SmallPack | True |
