Blind FasteningSpeed FasteningNeoSpeedNeoSpeed 3.2 mm Steel Speed Fastener
SKU No : 57121-03207

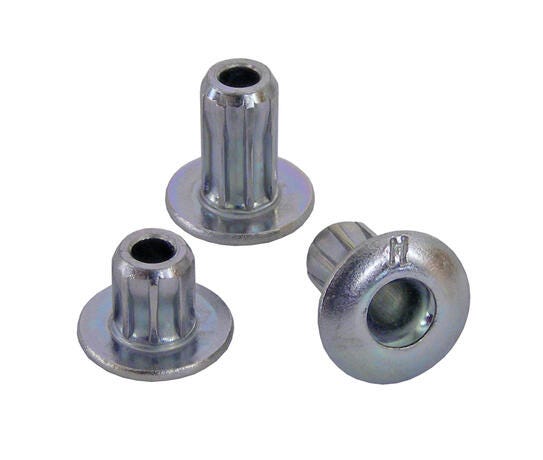

NeoSpeed 3.2 mm Steel Speed Fastener

Product description :

0.4-4.5 mm grip with 3.2 Nominal Diameter with 3.35-3.62 mm Hole Size and Steel Material

Technical Specifications

PropertySpecification
Brand
Avdel
nominal Diameter
3.2
Material
Steel
Finish
Zinc clear passivated
Min grip mm
0.4
Max grip mm
4.5
Min Grip Inches
0.02
Max Grip Inches
0.17716535433070868
Min Hole Size mm
3.35
Max Hole Size mm
3.62
Min Holes Size Inches
0.13188976377952757
Max Hole Size Inches
0.1425196850393701
Body Length mm
7.3
Body Length Inches
0.2874015748031496
Max Secondary Protrusion mm
3.17
Max Secondary Protrusion inches
0.12480314960629922
Flange Diameter mm
6.53
Flange Diameter inches
0.25708661417322837
Flange Thickness mm
1.1
Flange Thickness Inches
0.043307086614173235
Shear kN
1.16
Tensile kN
1.87
Shear lbf
260.77959999999996
Tensile lbf
420.3947
Fasteners per Pod
37
