Blind FasteningSpeed FasteningNeoSpeedNeoSpeed 3.2 mm Aluminium 5%Mg Speed Fastener
SKU No : 57101-03211

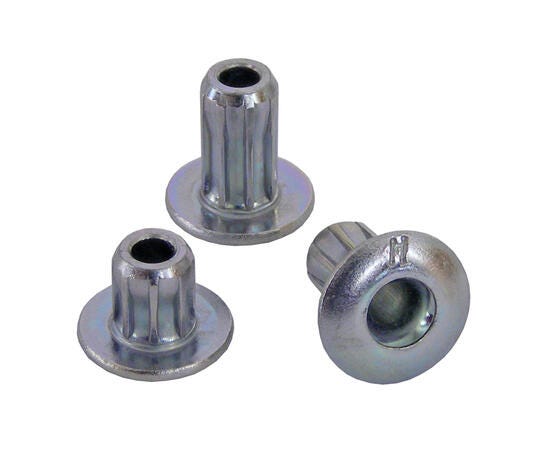

NeoSpeed 3.2 mm Aluminium 5%Mg Speed Fastener

Product description :

0.4-8.6 mm grip with 3.2 Nominal Diameter with 3.35-3.62 mm Hole Size and Aluminium 5%Mg Material

Technical Specifications

PropertySpecification
Brand
Avdel
nominal Diameter
3.2
Material
Aluminium 5%Mg
Finish
natural
Min grip mm
0.4
Max grip mm
8.6
Min Grip Inches
0.02
Max Grip Inches
0.33858267716535434
Min Hole Size mm
3.35
Max Hole Size mm
3.62
Min Holes Size Inches
0.13188976377952757
Max Hole Size Inches
0.1425196850393701
Body Length mm
11.5
Body Length Inches
0.45275590551181105
Max Secondary Protrusion mm
3.17
Max Secondary Protrusion inches
0.12480314960629922
Flange Diameter mm
6.53
Flange Diameter inches
0.25708661417322837
Flange Thickness mm
1.1
Flange Thickness Inches
0.043307086614173235
Shear kN
0.76
Tensile kN
1.25
Shear lbf
170.8556
Tensile lbf
281.0125
Fasteners per Pod
24
