Internally Threaded FastenersWire Thread InsertsTangedHeli-Coil M6x1 Tanged Screw-Locking Coarse Stainless Steel Wire Thread Inserts 9 mm Primer Free
SKU No : 4184-6CNPF090

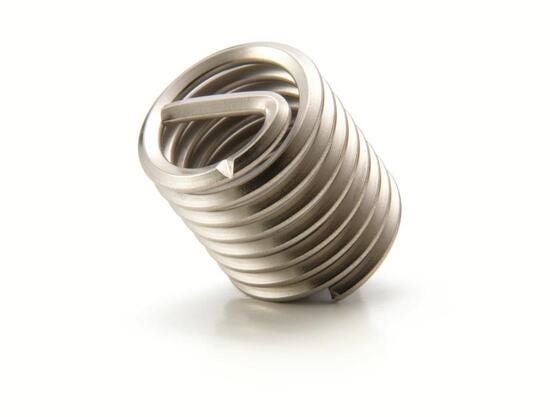

Heli-Coil M6x1 Tanged Screw-Locking Coarse Stainless Steel Wire Thread Inserts 9 mm Primer Free

Product description :

Heli-Coil M6x1 Tanged Screw-Locking Coarse Stainless Steel Wire Thread Inserts 9 mm Primer Free

Technical Specifications

PropertySpecification
Brand
Heli-Coil
Thread Size
M6x1 Metric
Length
9 mm
Locking Feature.1
Screw-Locking
Fine/Coarse
Coarse
Finish
Primer Free
Stripfeed?(Y/N)
N
Material
Stainless Steel
Formed Wire Number
WF-CI-1-B
Wire Guide
1.0
Wire Guide Ref.
98774-5
Mandrel
2956-6-
Mandrel Nut
2956-6
Machine Type
Model 5 // Model 5A Top Cut-Off // Model 5E
Cut-off Die
102011-7 // 3871-57-1 // 3871-57 // 102084
Cut-off Punch
102065 // 2879-67-6RH // 2879-67-5RL
Notch
102062-7
Test Bolt
51373-6
Coupon
51338-6
Prewinder
7751-6 (M)
