SKU No : 3591-5TNV312

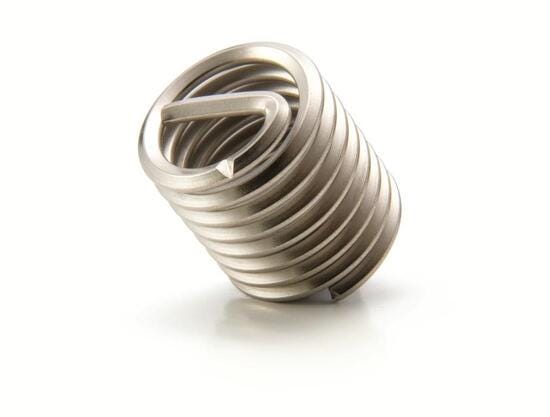

Heli-Coil 5/16-24 Tanged Screw-Locking Fine Inconel X Wire Thread Inserts 0.312 Inch Silver
Product description :
Heli-Coil 5/16-24 Tanged Screw-Locking Fine Inconel X Wire Thread Inserts 0.312 Inch Silver
Technical Specifications
| Property | Specification |
|---|---|
Brand | Heli-Coil |
Thread Size | 5/16-24 Inches |
Length | 0.312 Inch |
Locking Feature.1 | Screw-Locking |
Fine/Coarse | Fine |
Finish | Silver |
Stripfeed?(Y/N) | N |
Material | Inconel X |
Formed Wire Number | WF-TI-24-C |
Wire Guide | 24.0 |
Wire Guide Ref. | 98688-3 |
Mandrel | 2615-5- |
Mandrel Nut | 50812-28-10 // 98829-4 |
Machine Type | Model 5A Top Cut-Off |
Cut-off Die | 102011-7 // 3871-57-1 // 3871-57 // 102084 |
Cut-off Punch | 102065 |
Notch | 102062-7 |
Test Bolt | 51369-5 |
Coupon | 51348-5 |
Prewinder | 7552-5 (M) |
