Internally Threaded FastenersWire Thread InsertsTangedHeli-Coil 8-36 Tanged Screw-Locking Fine Stainless Steel Wire Thread Inserts 0.328 Inch Cadmium
SKU No : 3591-2CNY328

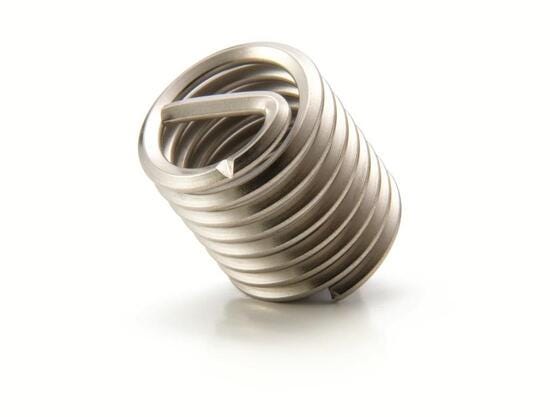

Heli-Coil 8-36 Tanged Screw-Locking Fine Stainless Steel Wire Thread Inserts 0.328 Inch Cadmium

Product description :

Heli-Coil 8-36 Tanged Screw-Locking Fine Stainless Steel Wire Thread Inserts 0.328 Inch Cadmium

Technical Specifications

PropertySpecification
Brand
Heli-Coil
Thread Size
8-36 Inches
Length
0.328 Inch
Locking Feature.1
Screw-Locking
Fine/Coarse
Fine
Finish
Cadmium
Stripfeed?(Y/N)
N
Material
Stainless Steel
Formed Wire Number
WF-CI-36-B
Wire Guide
36.0
Wire Guide Ref.
98688-11
Mandrel
2615-2-
Mandrel Nut
2879-66-24
Machine Type
Model 5 // Model 5E
Cut-off Die
102021-2A
Cut-off Punch
2879-67-6RH // 2879-67-5RL
Notch
102062-7
Test Bolt
51369-2
Coupon
51348-2
Prewinder
7552-2
