Internally Threaded FastenersWire Thread InsertsTangedHeli-Coil 2-56 Tanged Screw-Locking Coarse Nitronic 60 Wire Thread Inserts 0.215 Inch
SKU No : 3585-02EN215

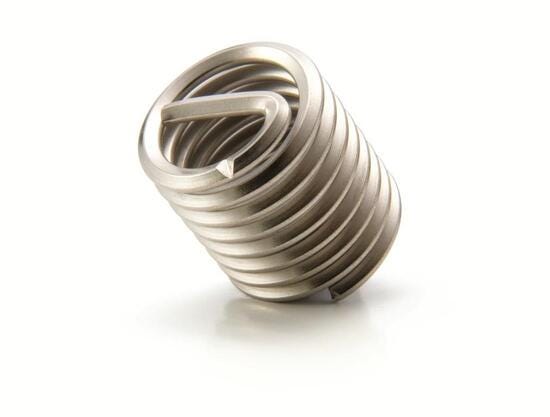

Heli-Coil 2-56 Tanged Screw-Locking Coarse Nitronic 60 Wire Thread Inserts 0.215 Inch

Product description :

Heli-Coil 2-56 Tanged Screw-Locking Coarse Nitronic 60 Wire Thread Inserts 0.215 Inch

Technical Specifications

PropertySpecification
Brand
Heli-Coil
Thread Size
2-56 Inches
Length
0.215 Inch
Locking Feature.1
Screw-Locking
Fine/Coarse
Coarse
Stripfeed?(Y/N)
N
Material
Nitronic 60
Formed Wire Number
WF-EI-56-A
Wire Guide
56.0
Wire Guide Ref.
98688-10
Mandrel
98893-02-25
Mandrel Nut
98895-02
Machine Type
Model 5 // Model 5E
Cut-off Die
102011-7 // 3871-57-1 // 3871-57 // 102084
Cut-off Punch
2879-67-6RH // 2879-67-5RL
Notch
102062-7
Test Bolt
51368-02
Coupon
51347-02
Prewinder
551-02
