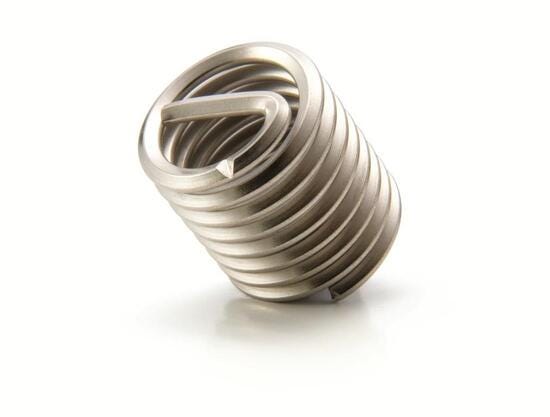

Internally Threaded FastenersWire Thread InsertsTangedHeli-Coil 7/16-14 Tanged Free Running Coarse Nitronic 60 Wire Thread Inserts 0.656 Inch
SKU No : 1185-7EN656

Heli-Coil 7/16-14 Tanged Free Running Coarse Nitronic 60 Wire Thread Inserts 0.656 Inch

Product description :

Heli-Coil 7/16-14 Tanged Free Running Coarse Nitronic 60 Wire Thread Inserts 0.656 Inch

Technical Specifications

PropertySpecification
Brand
Heli-Coil
Thread Size
7/16-14 Inches
Length
0.656 Inch
Locking Feature.1
Free Running
Fine/Coarse
Coarse
Stripfeed?(Y/N)
N
Material
Nitronic 60
Formed Wire Number
WF-EI-14-B
Wire Guide
14.0
Wire Guide Ref.
98688-9
Mandrel
98891-7
Mandrel Nut
98897-7
Machine Type
Model 5A Bottom Cut-Off
Cut-off Die
102011-7 // 3871-57-1 // 3871-57 // 102084
Cut-off Punch
3871-54-* // 50610-130-*
Notch
102062-5
Test Bolt
51368-7
Coupon
51347-7
Prewinder
7551-7 (M)
