SKU No : 1185-4CNW375

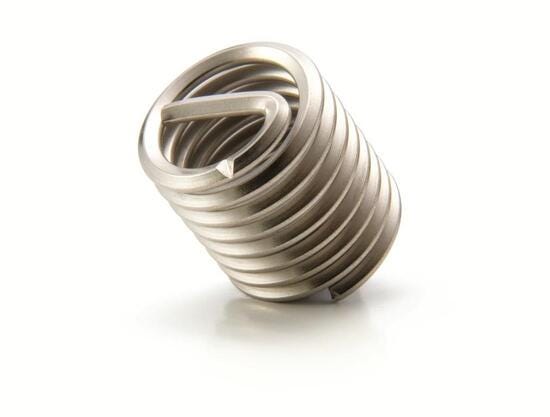

Heli-Coil 1/4-28 Tanged Free Running Coarse Stainless Steel Wire Thread Inserts 0.375 Inch Dry Film Lubricant
Product description :
Heli-Coil 1/4-28 Tanged Free Running Coarse Stainless Steel Wire Thread Inserts 0.375 Inch Dry Film Lubricant
Technical Specifications
| Property | Specification |
|---|---|
Brand | Heli-Coil |
Thread Size | 1/4-28 Inches |
Length | 0.375 Inch |
Locking Feature.1 | Free Running |
Fine/Coarse | Coarse |
Finish | Dry Film Lubricant |
Stripfeed?(Y/N) | N |
Material | Stainless Steel |
Formed Wire Number | WF-CI-28-C |
Wire Guide | 28.0 |
Wire Guide Ref. | 98688-14 |
Mandrel | 98647-5 |
Machine Type | Model 5A Top Cut-Off |
Cut-off Die | 102011-7 // 3871-57-1 // 3871-57 // 102084 |
Cut-off Punch | 102065 |
Notch | 102062-7 |
Test Bolt | 51369-4 |
Coupon | 51348-4 |
Prewinder | 7552-4 (M) |
