Internally Threaded FastenersWire Thread InsertsTangedHeli-Coil 6-40 Tanged Free Running Coarse Stainless Steel Wire Thread Inserts 0.207 Inch Dry Film Lubricant
SKU No : 1185-06CNW207

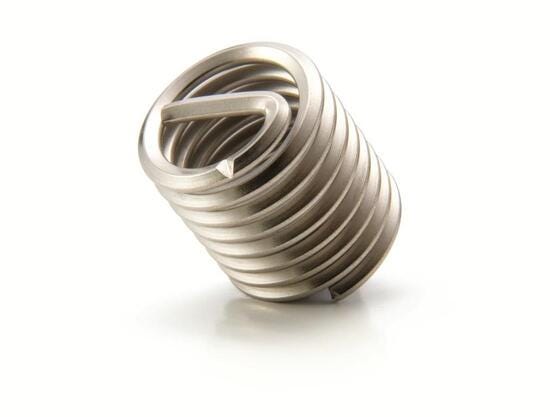

Heli-Coil 6-40 Tanged Free Running Coarse Stainless Steel Wire Thread Inserts 0.207 Inch Dry Film Lubricant

Product description :

Heli-Coil 6-40 Tanged Free Running Coarse Stainless Steel Wire Thread Inserts 0.207 Inch Dry Film Lubricant

Technical Specifications

PropertySpecification
Brand
Heli-Coil
Thread Size
6-40 Inches
Length
0.207 Inch
Locking Feature.1
Free Running
Fine/Coarse
Coarse
Finish
Dry Film Lubricant
Stripfeed?(Y/N)
N
Material
Stainless Steel
Formed Wire Number
WF-CI-40-B
Wire Guide
40.0
Wire Guide Ref.
98688-6
Mandrel
98647-12
Machine Type
Model 5 // Model 5E
Cut-off Die
102021-2A
Cut-off Punch
2879-67-6RH // 2879-67-5RL
Notch
102062-7
Test Bolt
51369-06
Coupon
51348-06
Prewinder
7552-06
