Internally Threaded FastenersWire Thread InsertsTangedHeli-Coil M5x0.8 Tanged Free Running Coarse Stainless Steel Wire Thread Inserts 7.5 mm Dry Film Lubricant
SKU No : 1084-5CNW075

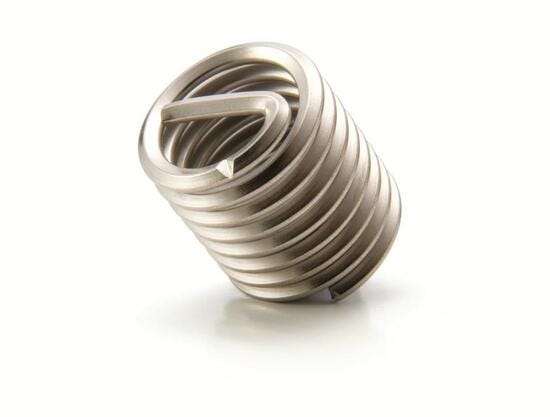

Heli-Coil M5x0.8 Tanged Free Running Coarse Stainless Steel Wire Thread Inserts 7.5 mm Dry Film Lubricant

Product description :

Heli-Coil M5x0.8 Tanged Free Running Coarse Stainless Steel Wire Thread Inserts 7.5 mm Dry Film Lubricant

Technical Specifications

PropertySpecification
Brand
Heli-Coil
Thread Size
M5x0.8 Metric
Length
7.5 mm
Locking Feature.1
Free Running
Fine/Coarse
Coarse
Finish
Dry Film Lubricant
Stripfeed?(Y/N)
N
Material
Stainless Steel
Formed Wire Number
WF-CI-0.8-B
Wire Guide
0.8
Wire Guide Ref.
98774-4
Mandrel
98776-5
Mandrel Nut
98780-5
Machine Type
Model 5 // Model 5E
Cut-off Die
102021-2A
Cut-off Punch
2879-67-6RH // 2879-67-5RL
Notch
102062-7
Test Bolt
51373-5
Coupon
51337-5
Prewinder
7751-5 (M)
