SKU No : 102104070

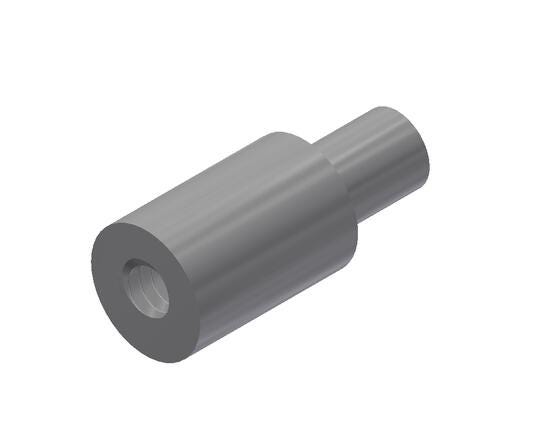

TXL 3/4 X 5 5/8 MS YLZN 3/8-16
Product description :
TXL 3/4 X 5 5/8 MS YLZN 3/8-16
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.75 inches |
Width | 0.75 inches |
Length | 5.625 inches |
Weight | 0.642 Lb |
Brand | Nelson |
Material (O) | Low Carbon Steel |
Stud Dia | 0.75 inches |
Weld Base Dia | 0.5 inches |
Overall Length | 5.625 inches |
Weld Base Length | 0.562 inches |
Burn Off | 0.125 inches |
Tap Size | 3/8-16 UN/UNF |
Tap Length | 0.75 inches |
Related Ferrule | 100101119.0 |
Related Chuck | 500001018.0 |
Related Grip | 501001012.0 |
Related Foot | 502001138.0 |
Related HD Foot | 502001002.0 |
