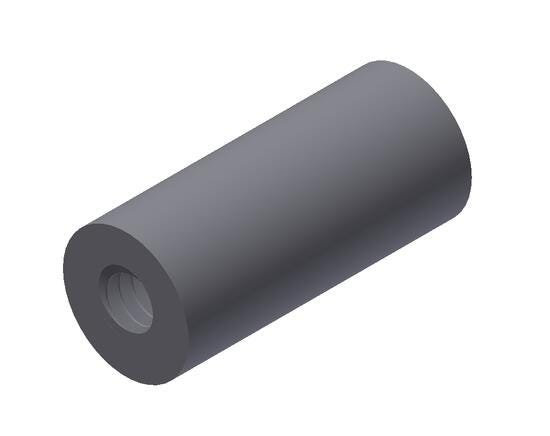

SKU No : 102103030
TBL 3/8 X 15/16 SS18-8 1/4-20
Product description :
TBL 3/8 X 15/16 SS18-8 1/4-20
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.375 inches |
Width | 0.375 inches |
Length | 0.9325 inches |
Weight | 0.025 Lb |
Brand | Nelson |
Material (O) | Low Carbon Steel |
Stud Dia | 0.375 inches |
Weld Base Dia | 0.375 inches |
Overall Length | 0.9325 inches |
Burn Off | 0.125 inches |
Tap Size | 1/4-20 UN/UNF |
Tap Length | 0.375 inches |
Min Base Length | 0.14 inches |
Flash Dia | 0.5 inches |
Flash Thickness | 0.125 inches |
Related Ferrule | 100101099.0 |
Related Chuck | 500001011.0 |
Related Grip | 501001009.0 |
Related Foot | 502001137.0 |
Related HD Foot | 502001001.0 |
