SKU No : 102098156

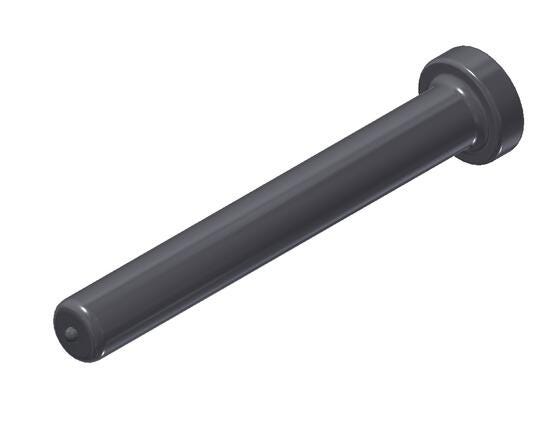

S3L 7/8 X 16 3/16 MS
Product description :
S3L 7/8 X 16 3/16 MS
Technical Specifications
| Property | Specification |
|---|---|
Height | 1.375 inches |
Width | 1.375 inches |
Length | 16.1875 inches |
Weight | 2.849 |
Brand | Nelson |
Material (O) | Low Carbon Steel |
Stud Dia | 0.875 inches |
Weld Base Dia | 0.875 inches |
Head Dia | 1.375 inches |
Overall Length | 16.1875 inches |
Head Thickness | 0.375 inches |
Burn Off | 0.187 inches |
Related Ferrule | 100101140.0 |
Related Chuck | 500001091.0 |
Related Grip | 501006028.0 |
Related HD Foot | 502002042.0 |
