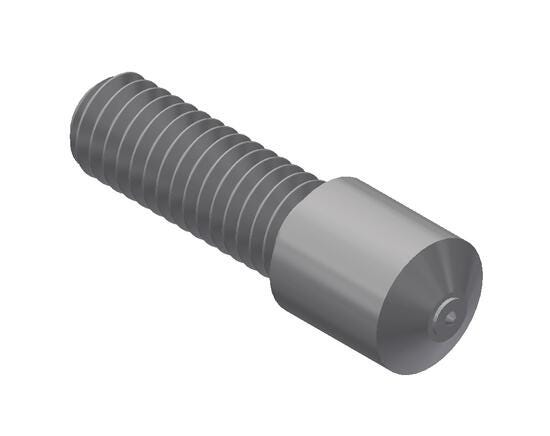

SKU No : 102093073
SBA 5/16 X 1 1/2 5086 1/4-20 X
Product description :
SBA 5/16 X 1 1/2 5086 1/4-20 X
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.312 inches |
Width | 0.312 inches |
Length | 2.75 inches |
Weight | 0.016 Lb |
Brand | Nelson |
Material (O) | Aluminum |
Stud Dia | 0.312 inches |
Weld Base Dia | 0.312 inches |
Overall Length | 2.75 inches |
Weld Base Length | 1.5 inches |
Burn Off | 0.093 inches |
Thread Size | 1/4-20 UN/UNF |
Thread Length | 1.25 inches |
Flash Dia | 0.468 inches |
Flash Thickness | 0.156 inches |
Related Ferrule | 100101048.0 |
Related Chuck | 500001007.0 |
Related Grip | 501001006.0 |
Related Foot | 502001137.0 |
