SKU No : 102063537

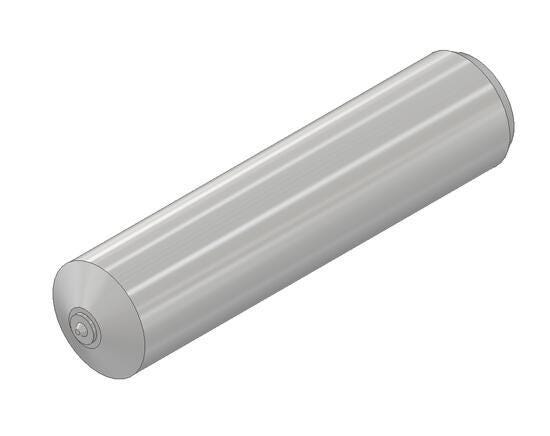

NBL 5/16 X 3 1/2 SPEC A479/
Product description :
NBL 5/16 X 3 1/2 SPEC A479/
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.3125 inches |
Width | 0.3125 inches |
Length | 3.5 inches |
Weight | 0.077 Lb |
Brand | Nelson |
Material (O) | Low Carbon Steel |
Stud Dia | 0.3125 inches |
Weld Base Dia | 0.3125 inches |
Overall Length | 3.5 inches |
Burn Off | 0.125 inches |
Flash Dia | 0.437 inches |
Flash Thickness | 0.109 inches |
Related Ferrule | 100101007.0 |
Related Chuck | 500001009.0 |
Related Grip | 501001006.0 |
Related Foot | 502001137.0 |
Related HD Foot | 502001001.0 |
