SKU No : 102044148

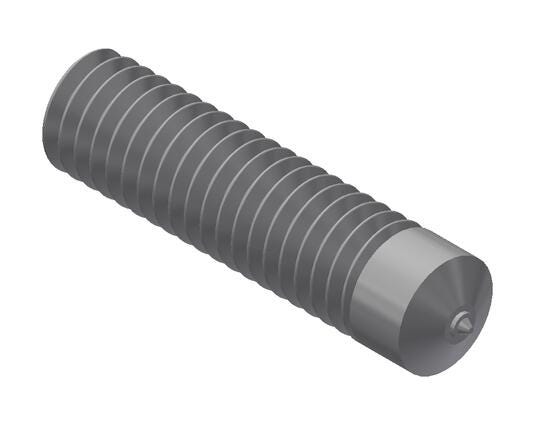

HBL 7/8-9 X 34 3/16 MS W/

Product description :

HBL 7/8-9 X 34 3/16 MS W/

Technical Specifications

PropertySpecification
Height
0.875 inches
Width
0.875 inches
Length
34.1875 inches
Weight
5.817 Lb
Brand
Nelson
Material (O)
Monel 400
Stud Dia
0.875 inches
Weld Base Dia
0.875 inches
Overall Length
34.1875 inches
Weld Base Length
0.625 inches
Burn Off
0.187 inches
Thread Size
7/8-9 UN/UNF
Flash Dia
1.125 inches
Flash Thickness
0.312 inches
Related Ferrule
100101140.0
Related Chuck
500001019.0
Related Grip
501001015.0
Related HD Foot
502001003.0
