SKU No : 102044136

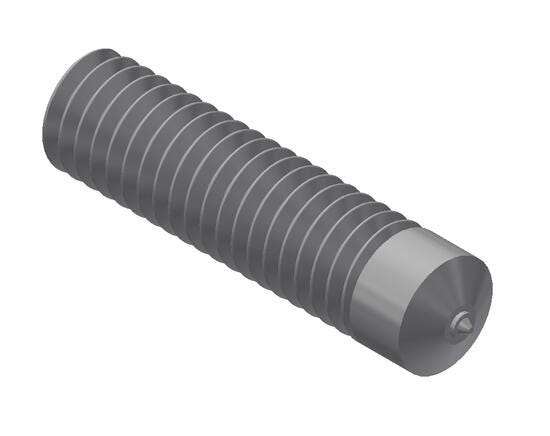

HBA 1/2-13 X 2 1/2 AL50

Product description :

HBA 1/2-13 X 2 1/2 AL50

Technical Specifications

PropertySpecification
Height
0.5 inches
Width
0.5 inches
Length
2.5 inches
Weight
0.043 Lb
Brand
Nelson
Material (O)
Aluminum
Stud Dia
0.5 inches
Weld Base Dia
0.5 inches
Overall Length
2.5 inches
Weld Base Length
0.515 inches
Burn Off
0.125 inches
Thread Size
1/2-13 UN/UNF
Flash Dia
0.75 inches
Flash Thickness
0.25 inches
Related Ferrule
100101051.0
Related Chuck
500001014.0
Related Foot
751020000.0
