SKU No : 102044116

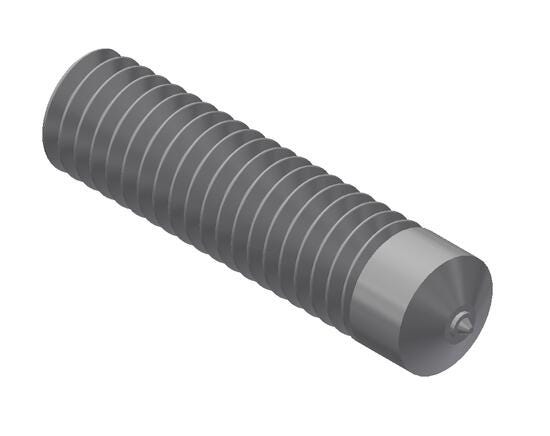

HBA 3/8-16 X 1 5356-O SPEC TIP

Product description :

HBA 3/8-16 X 1 5356-O SPEC TIP

Technical Specifications

PropertySpecification
Height
0.375 inches
Width
0.375 inches
Length
1 inches
Weight
0.01 Lb
Brand
Nelson
Material (O)
Aluminum
Stud Dia
0.375 inches
Weld Base Dia
0.375 inches
Overall Length
1 inches
Weld Base Length
0.39 inches
Burn Off
0.093 inches
Thread Size
3/8-16 UN/UNF
Flash Dia
0.603 inches
Flash Thickness
0.187 inches
Related Ferrule
100101049.0
Related Chuck
500001010.0
Related Foot
751020000.0
