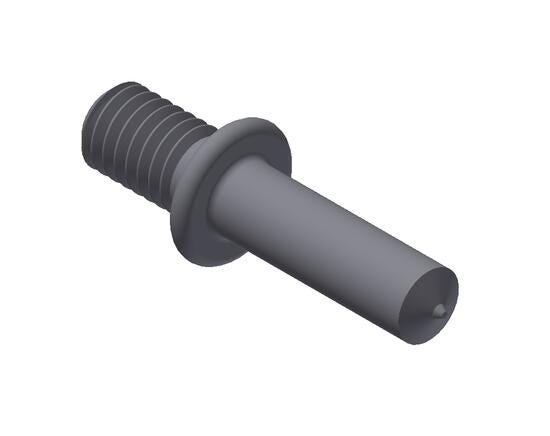

SKU No : 102015288
CKA .215 X 1 1/8 AL50 1 1/4
Product description :
CKA .215 X 1 1/8 AL50 1 1/4
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.5 inches |
Width | 0.5 inches |
Length | 1.968 inches |
Weight | 0.01 Lb |
Brand | Nelson |
Material (O) | Aluminum |
Stud Dia | 0.25 inches |
Weld Base Dia | 0.215 inches |
Collar Dia | 0.5 inches |
Overall Length | 1.968 inches |
Head Thickness | 0.093 inches |
Burn Off | 0.125 inches |
Base Length | 1.125 inches |
Extension | 0.75 inches |
Thread Size | 1/4-20 UN/UNF |
Flash Dia | 0.5 inches |
Flash Thickness | 0.093 inches |
Related Ferrule | 100101047.0 |
Related Chuck | 500001007.0 |
Related Foot | 751020000.0 |
Related HD Foot | 751020000.0 |
