SKU No : 102014083

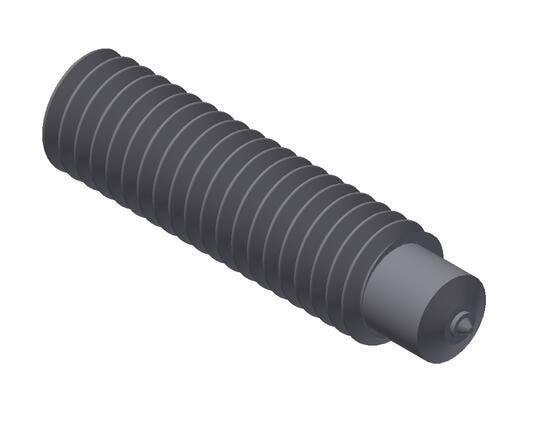

CJL 5/8-11 X 1 1/2 SS304L
Product description :
CJL 5/8-11 X 1 1/2 SS304L
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.625 inches |
Width | 0.625 inches |
Length | 1.5 inches |
Weight | 0.102 Lb |
Brand | Nelson |
Material (O) | Stainless Steel |
Stud Dia | 0.625 inches |
Weld Base Dia | 0.5 inches |
Overall Length | 1.5 inches |
Weld Base Length | 0.312 inches |
Burn Off | 0.187 inches |
Thread Size | 5/8-11 UN/UNF |
Flash Dia | 0.656 inches |
Flash Thickness | 0.156 inches |
Related Ferrule | 100101021.0 |
Related Chuck | 500001016.0 |
Related Grip | 501001011.0 |
Related HD Foot | 502001002.0 |
