SKU No : 102014070

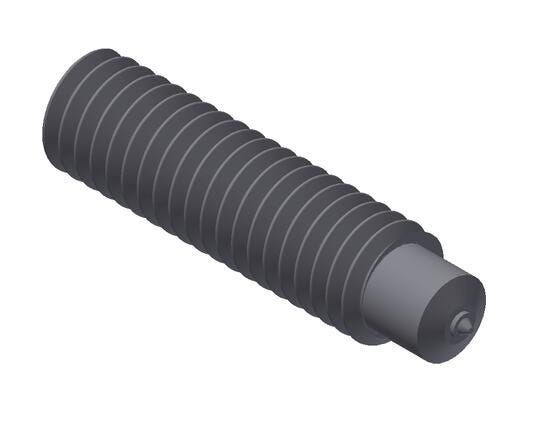

CJL 3/8-16 X 5 SS316L
Product description :
CJL 3/8-16 X 5 SS316L
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.375 inches |
Width | 0.375 inches |
Length | 5 inches |
Weight | 0.121 Lb |
Brand | Nelson |
Material (O) | Stainless Steel |
Stud Dia | 0.375 inches |
Weld Base Dia | 0.275 inches |
Overall Length | 5 inches |
Weld Base Length | 0.218 inches |
Burn Off | 0.125 inches |
Thread Size | 3/8-16 UN/UNF |
Flash Dia | 0.437 inches |
Flash Thickness | 0.109 inches |
Related Ferrule | 100101018.0 |
Related Chuck | 500001011.0 |
Related Grip | 501001007.0 |
Related Foot | 502001137.0 |
Related HD Foot | 502001001.0 |
