SKU No : 102008001

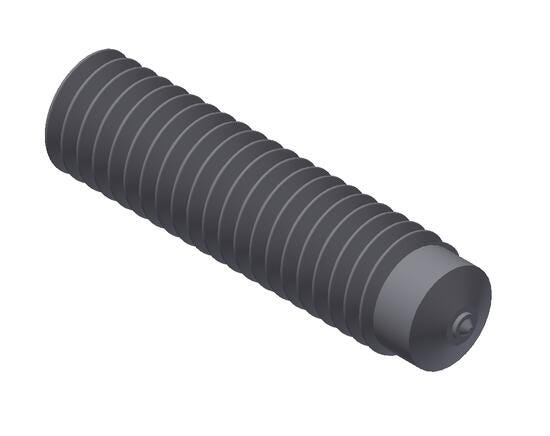

CDL 5/8-11 X 1 5/16 SS309 @ A
Product description :
CDL 5/8-11 X 1 5/16 SS309 @ A
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.625 inches |
Width | 0.625 inches |
Length | 1.3125 inches |
Weight | 0.085 Lb |
Brand | Nelson |
Material (O) | Stainless Steel |
Stud Dia | 0.625 inches |
Weld Base Dia | 0.5 inches |
Overall Length | 1.3125 inches |
Weld Base Length | 0.548 inches |
Burn Off | 0.156 inches |
Thread Size | 5/8-11 UN/UNF |
Flash Dia | 0.656 inches |
Flash Thickness | 0.156 inches |
Related Ferrule | 100101033.0 |
Related Chuck | 500001016.0 |
Related Grip | 501001011.0 |
Related Foot | 502001138.0 |
Related HD Foot | 502001002.0 |
