SKU No : 102005008

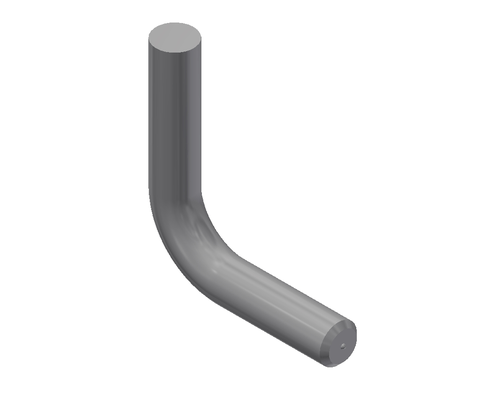

B4L .448 X 1 3/8 MS 2 1/2 LEG
Product description :
B4L .448 X 1 3/8 MS 2 1/2 LEG
Technical Specifications
| Property | Specification |
|---|---|
Height | 0.448 inches |
Width | 1.375 inches |
Length | 2.5 inches |
Weight | 0.144 Lb |
Brand | Nelson |
Material (O) | Low Carbon Steel |
Stud Dia | 0.448 inches |
Weld Base Dia | 0.448 inches |
Base Length | 1.375 inches |
Extension | 2.5 inches |
Bend Radius | 0.25 inches |
Bend Angle | 90.0 |
Related Ferrule | 100101114.0 |
Related Chuck | 500008010.0 |
Related Foot | 501006007.0 |
